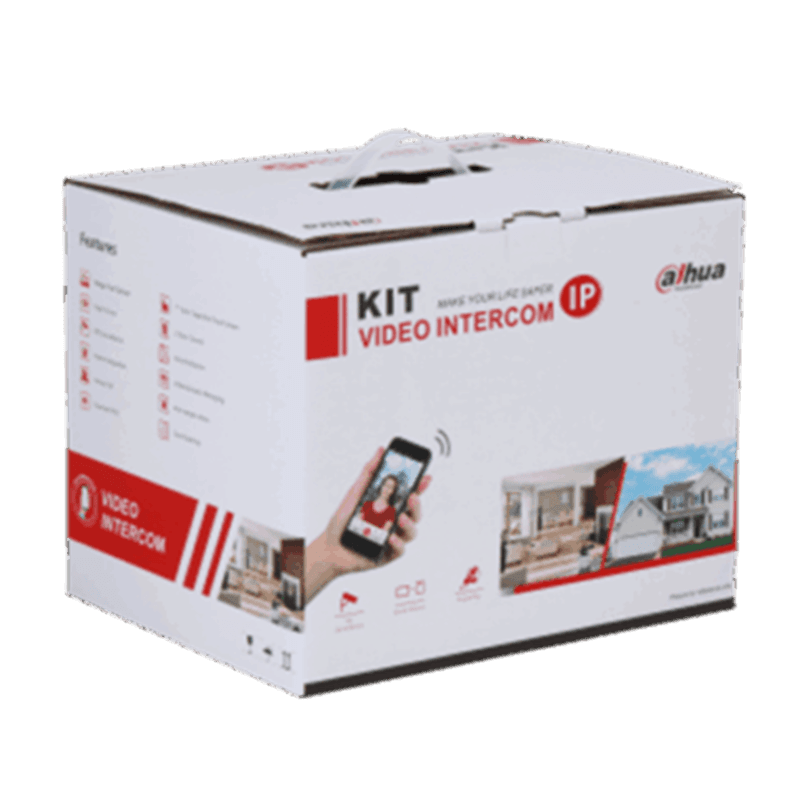

VIDEOPORTERO DAHUA PARA VILLA CON MONITOR INTERIOR IP65 KTP02

Technical Specification Model DHI-VTO2111D-P-S2 System Main Processor Embedded processor Operating System Embedded LINUX operating system Button Type Mechanical Interoperability ONVIF Internet Protocol SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP Basic Camera 1/4″ 1MP CMOS high definition, low illumination/WDR, color/IR Angle of View Horizontal: 107°; vertical: 61°; diagonal: 122° WDR 120 dB Noise Reduction 3D noise reduction Video Compression H.264 Video Resolution Main stream: WVGA, 720P, D1 Sub stream: CIF, WVGA, QVGA, 1080P, D1 Frame Rate PAL: 25 fps NTSC: 30 fps Video Bit Rate 256 K to 4 M Light Compensation Auto IR D/N ICR auto switch Audio Compression G.711a; G.711u; PCM Audio Input 1 Audio Output Built-in speaker Audio Mode Two-way voice call Audio Enhancement Echo suppression and cancellation/digital noise reduction Audio Bit Rate 16 kHz, 16 Bit Function Communication Full digital Unlock Mode Card/App remote/indoor monitor unlock Card Type IC card Motion Detection Video motion detection Auto Snapshot Auto snapshot can only be enabled on indoor monitors Leave Photos and Messages Yes (Insert an SD card into the indoor monitor.) Web Configuration Yes Performance Card Reading Distance 3cm–5cm Casing PC+Acrylic Capacity Card 10,000 Port RS-485 1 Electric Lock 1 Exit Button 1 Door Status Detection 1 Lock Control 1, normally closed by default Network 1 10Mbps/100Mbps network port (8-core white ribbon cable) Alarm Tamper Yes General Color Black Power Supply Mode 12 VDC, 1 A Standard PoE Installation Surface mount Certifications CE FCC UL Accessory Brackets and alarm ribbon cable Dimensions 135 mm × 70.4 mm × 34.4 mm (5.31″ × 2.77″ × 1.35″) Protection Grade IP65 (silicone sealant is needed, see the quick start guide) Operating Temperature –30°C to +60°C (–20°F to +60°F ) Operating Humidity 10%–90% (RH) (Non-condensing) Operating Altitude Beneath 3000 m (9842.52 ft) Power Consumption Standby≤1 W, working≤5 W Gross Weight 326 g (0.72 lb) Model DHI-VTH2421FB-P Main Processor High performace embedded processor Operating System Embedded LINUX OS Screen Type Capacitive screen Display 7-inch TFT screen Resolution 1024 × 600 Video Compression H.264 Audio Compression G.711A, G.711U, PCM Audio Input 1 channel all-direction microphone Audio Output Built-in 1.5W loudspeaker Audio Mode Support dual-way bidirectional talk Audio Enhancement Support echo cancellation/DNR Audio Bit Rate 16 kbps Communication Mode Full digital Information Release Support to receive and view notifications issued by center Leave Videos or Text Messages Yes DND Mode Support to set DND period Sub-station Quantity 9 Alarm Input 6 channel (switch quantity) Alarm Output 1 channel Network 1 RJ-45 SOS Alarm Yes Casing PC + ABS Appearance Color Black Power Supply 12 VDC, 1 A Standard PoE Installation Wall mount Accessories Default bracket Default alarm cable Dimensions 119.6 mm × 221.5 mm × 21.5 mm (4.71″ × 8.72″ × 0.85″) Operating Temperature -10°C to +55°C (+14°F to +131°F) Operating Humidity 10%–95% (RH) Power Consumption Standby≤4 W, work≤6 W Gross Weight 0.35 kg (0.77 lb) Power Supply Mode PoE or 12 VDC Storage Support Micro SD, maximum memory capacity 32 G, standard memory capacity 8 G Model DH-PFS3006-4ET-36 Main Processor High performace embedded processor Ethernet Port 4 PoE ports with 10/100 Mbps Base-TX 2 uplink ports with 10/100Mbps Base-TX PoE Power Consumption Port1-4 ≤30 W, whole PoE budget ≤36 W PoE Protocol IEEE802.3af, IEEE802.3at Weight 0.56 kg (1.23 lb) Dimension(W×D×H) 194.0 mm × 108.1 mm × 35.0 mm (7.64″ × 4.26″ × 1.38″)
